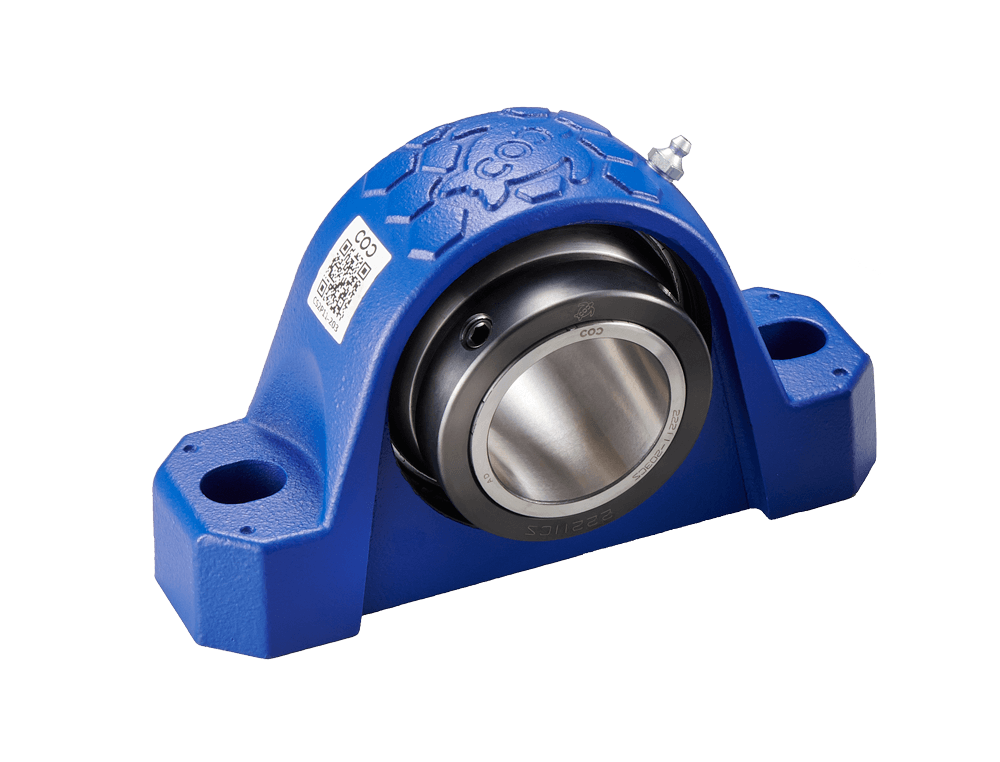

CS2P

No. Unit No. Bearing No. Shaft Dia. H L J Bolt Size Cr Cor
1 CS2P08-107 22208-107CS 1 7/16 in 1 7/8 in 6 5/8 in 5 in 1/2 in 20408 lbf 21623 lbf
2 CS2P08-108 22208-108CS 1 1/2 in 1 7/8 in 6 5/8 in 5 in 1/2 in 20408 lbf 21623 lbf
3 CS2P08-040 22208-040CS 40 mm 47.6 mm 168 mm 127 mm M12 90.7 kN 96.1 kN
4 CS2P09-111 22209-111CS 1 11/16 in 2 1/8 in 7 1/8 in 5 1/2 in 1/2 in 21150 lbf 23625 lbf
5 CS2P09-112 22209-112CS 1 3/4 in 2 1/8 in 7 1/8 in 5 1/2 in 1/2 in 21150 lbf 23625 lbf
6 CS2P09-045 22209-045CS 45 mm 54 mm 181 mm 140 mm M12 94 kN 105 kN
7 CS2P10-115 22210-115CS 1 15/16 in 2 1/4 in 8 in 6 1/4 in 5/8 in 22095 lbf 25313 lbf
8 CS2P10-050 22210-050CS 50 mm 57.2 mm 203 mm 159 mm M16 98.2 kN 112.5 kN
9 CS2P10-200 22210-200CS 2 in 2 1/4 in 8 in 6 1/4 in 5/8 in 22095 lbf 25313 lbf
10 CS2P11-055 22211-055CS 55 mm 63.5 mm 216 mm 170 mm M16 122 kN 145 kN
11 CS2P11-203 22211-203CS 2 3/16 in 2 1/2 in 8 1/2 in 6 3/4 in 5/8 in 27450 lbf 32625 lbf
12 CS2P11-204 22211-204CS 2 1/4 in 2 1/2 in 8 1/2 in 6 3/4 in 5/8 in 27450 lbf 32625 lbf
13 CS2P13-060 22213-060CS 60 mm 69.8 mm 225 mm 181 mm M16 178 kN 212 kN
14 CS2P13-207 22213-207CS 2 7/16 in 2 3/4 in 8 7/8 in 7 1/8 in 5/8 in 40050 lbf 47700 lbf
15 CS2P13-208 22213-208CS 2 1/2 in 2 3/4 in 8 7/8 in 7 1/8 in 5/8 in 40050 lbf 47700 lbf
16 CS2P13-065 22213-065CS 65 mm 69.8 mm 225 mm 181 mm M16 178 kN 212 kN
17 CS2P15-211 22215-211CS 2 11/16 in 3 1/4 in 10 5/16 in 8 1/8 in 3/4 in 42075 lbf 51300 lbf
18 CS2P15-212 22215-212CS 2 3/4 in 3 1/4 in 10 5/16 in 8 1/8 in 3/4 in 42075 lbf 51300 lbf
19 CS2P15-070 22215-070CS 70 mm 82.6 mm 262 mm 206 mm M20 187 kN 228 kN
20 CS2P15-215 22215-215CS 2 15/16 in 3 1/4 in 10 5/16 in 8 1/8 in 3/4 in 42075 lbf 51300 lbf
21 CS2P15-075 22215-075CS 75 mm 82.6 mm 262 mm 206 mm M20 187 kN 228 kN
22 CS2P15-300 22215-300CS 3 in 3 1/4 in 10 5/16 in 8 1/8 in 3/4 in 42075 lbf 51300 lbf
23 CS2P18-080 22218-080CS 80 mm 95.2 mm 321 mm 254 mm M22 302 kN 373 kN
24 CS2P18-304 22218-304CS 3 1/4 in 3 3/4 in 12 5/8 in 10 in 7/8 in 67950 lbf 83925 lbf
25 CS2P18-085 22218-085CS 85 mm 95.2 mm 321 mm 254 mm M22 302 kN 373 kN
26 CS2P18-307 22218-307CS 3 7/16 in 3 3/4 in 12 5/8 in 10 in 7/8 in 67950 lbf 83925 lbf
27 CS2P18-308 22218-308CS 3 1/2 in 3 3/4 in 12 5/8 in 10 in 7/8 in 67950 lbf 83925 lbf
28 CS2P18-090 22218-090CS 90 mm 95.2 mm 321 mm 254 mm M22 302 kN 373 kN
29 CS2P20-095 22220-095CS 95 mm 108 mm 384 mm 298 mm M24 371 kN 471 kN
30 CS2P20-100 22220-100CS 100 mm 108 mm 384 mm 298 mm M24 371 kN 471 kN
31 CS2P20-315 22220-315CS 3 15/16 in 4 1/4 in 15 1/8 in 11 3/4 in 1 in 83475 lbf 105975 lbf
32 CS2P20-400 22220-400CS 4 in 4 1/4 in 15 1/8 in 11 3/4 in 1 in 83475 lbf 105975 lbf
